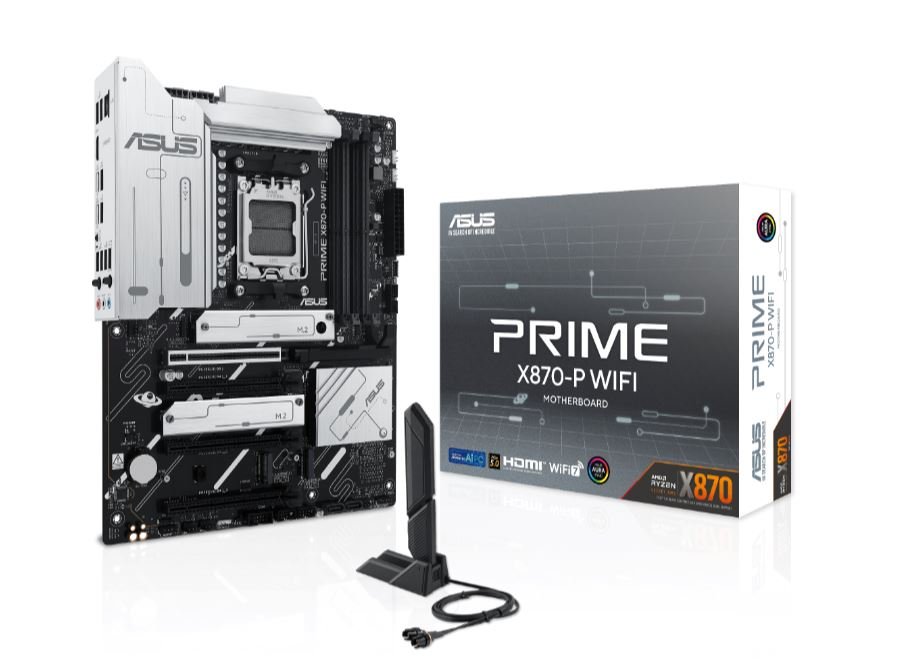

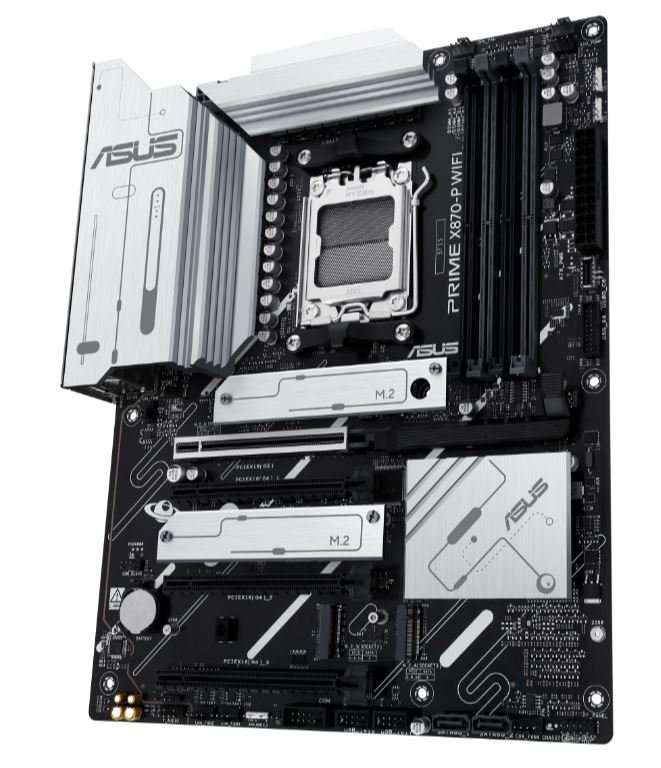

ASUS PRIME X870-P WIFI AMD AM5 X870 ATX motherboard

Name: ASUS PRIME X870-P WIFI AMD AM5 X870 ATX motherboard
Brand: ASUS
SKU: MBAM5-PRIME-X870-P-WIFI
Price: 259.99 USD
Availability: InStock

Interfaces/Ports: HDMI

Chipset: AMD X870

CPU Socket: AM5

# of Memory Slots: 4

MPN: PRIME X870-P WIFI

Brand: ASUS

Memory Technology: DDR5

UPC/EAN: 197105718142

Form Factor: ATX

ASUS PRIME X870-P WIFI AMD AM5 X870 ATX motherboard 14+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 , PCIe 5.0 x16, Q-Release, 4x M.2 , Wi-Fi 7, Q-Antenna, 2.5Gb LAN, USB4 , USB Type-C , BIOS FlashBack

Product Details

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AI Solutions

ASUS AI Solutions, including AI Networking II for real-time bandwidth optimization and AI Cooling II for thermal control, offer new levels of ultrafast connectivity, performance and efficient cooling.

Robust power design

Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.3

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME X870-P WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks4.

Four M.2 slots (up to 128 Gbps)

PRIME X870-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives5.

Cooler by design

The PRIME X870-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Empowering connections

The PRIME X870-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

The PRIME X870-P WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

ASUS PRIME X870-P WIFI

News & Updates

Please refer to the global product page at the following link for the latest news and specifications.

https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p-wifi/techspec/

Specifications

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

* Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset

3 x PCIe 4.0 x16 slots (support x1 mode)***

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.

*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
