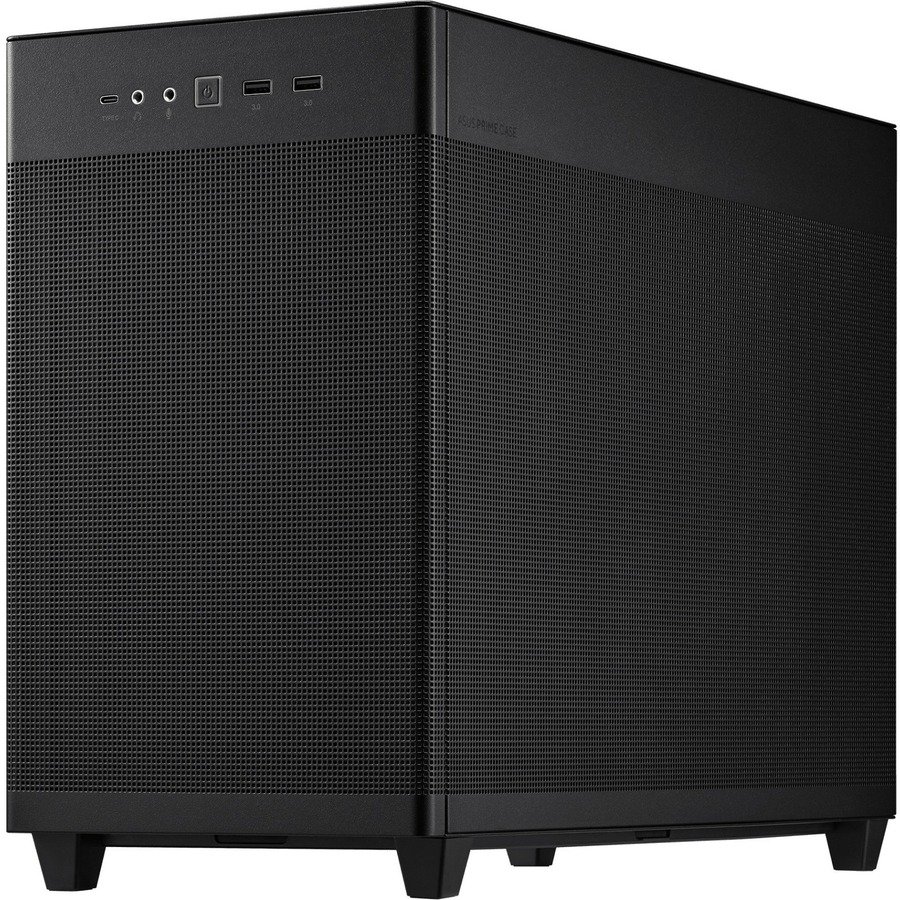

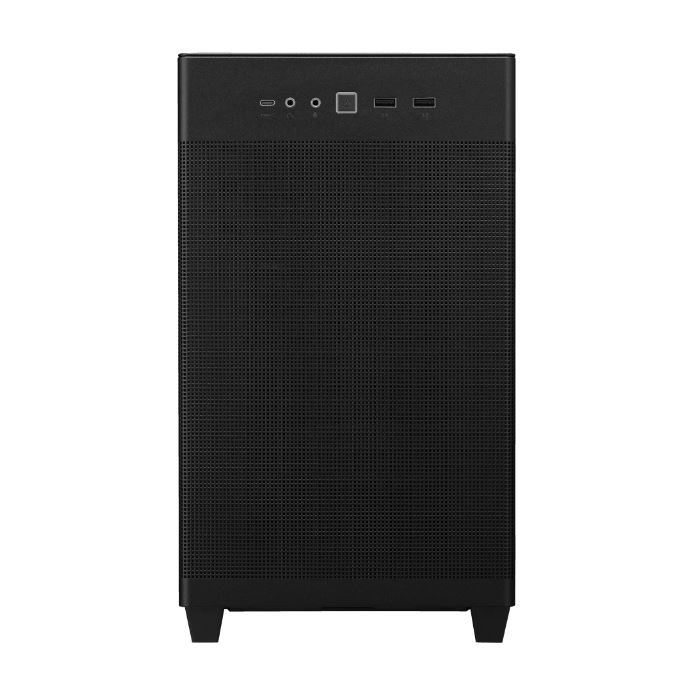

ASUS Prime AP201 MicroATX PC Case - 33L, Tool-Free, 360mm Radiator Support

ASUS Prime AP201 MicroATX Case (Black) General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   AP201/BLK/MESH//

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus

Product Model:   AP201

Product Name:   Prime AP201 Computer Case

Marketing Information:

The ASUS Prime AP201 PC case is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.

Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.

Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

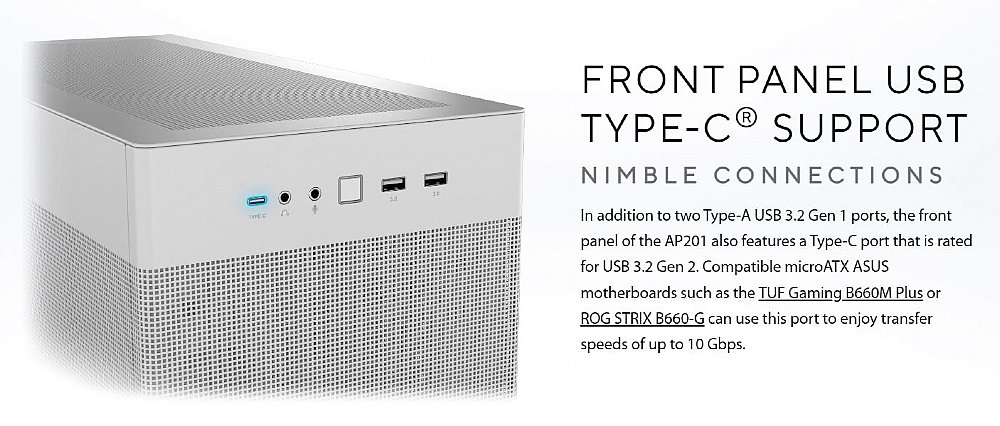

Front Panel USB Type-C® Support: The front panel of the ASUS Prime AP201 computer case features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

GO BIG. STAY COMPACT. 33-LITERS OF COOL

The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.

QUASI-FILTER MESH PANELS | BREATHE FREELY

The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.

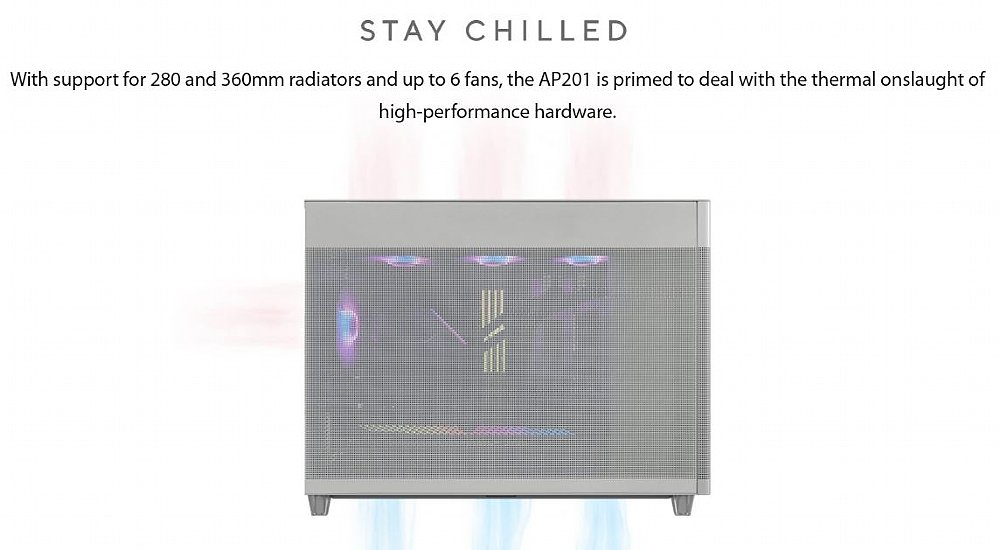

OPTIMIZED FOR COOLING | STAY CHILLED

With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

REMOVABLE DUST FILTER | SPECS, NOT SPECKS

The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.

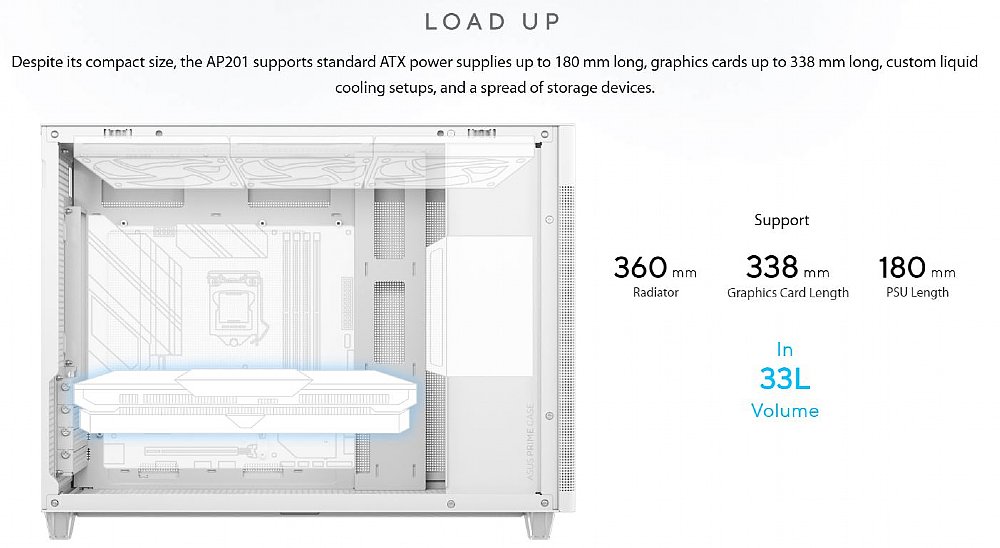

INDUSTRY-LEADING SPATIAL EFFICIENCY | LOAD UP

Despite its compact size, the ASUS Prime AP201 MicroATX case (black) supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.

Package Type:   Retail

Product Type:   Computer Case

Technical Information

Motherboard Supported:   Micro ATX

Motherboard Supported:   Mini ITX

Number of Fans Supported:   6

Number of Fans Installed:   1

Installed Fan Size:   4.72"

Bays

Number of Internal 2.5" Bays:   1

Number of Internal 2.5"/3.5" Bays:   3

Number of Total Expansion Bays:   4

I/O Expansions

Number of Total Expansion Slots:   4

Interfaces/Ports

Total Number of USB Ports:   3

Front USB:   Yes

Total Number of Audio In Ports:   1

Front Audio In:   Yes

Total Number of Audio Out Ports:   1

Front Audio Out:   Yes

ASUS Prime AP201 MicroATX Case (Black) Power Description

Power Supply Installed:   No

Number of Power Supplies Supported:   1

Number of Power Supplies Installed:   0

Physical Characteristics

Product Color:   Black

Product Material:   Mesh

Cooler Type:   Fan/Liquid Cooler

Form Factor:   Small Tower

Maximum CPU Cooler Height:   6.69"

Maximum PSU Length:   7.09"

Weight (Approximate):   12.79 lb

Miscellaneous

Environmentally Friendly:   Yes

Environmental Certification:   RoHS
