Brand: ASUS
SKU: MB17Q670-PRO Q670M-C-CSM

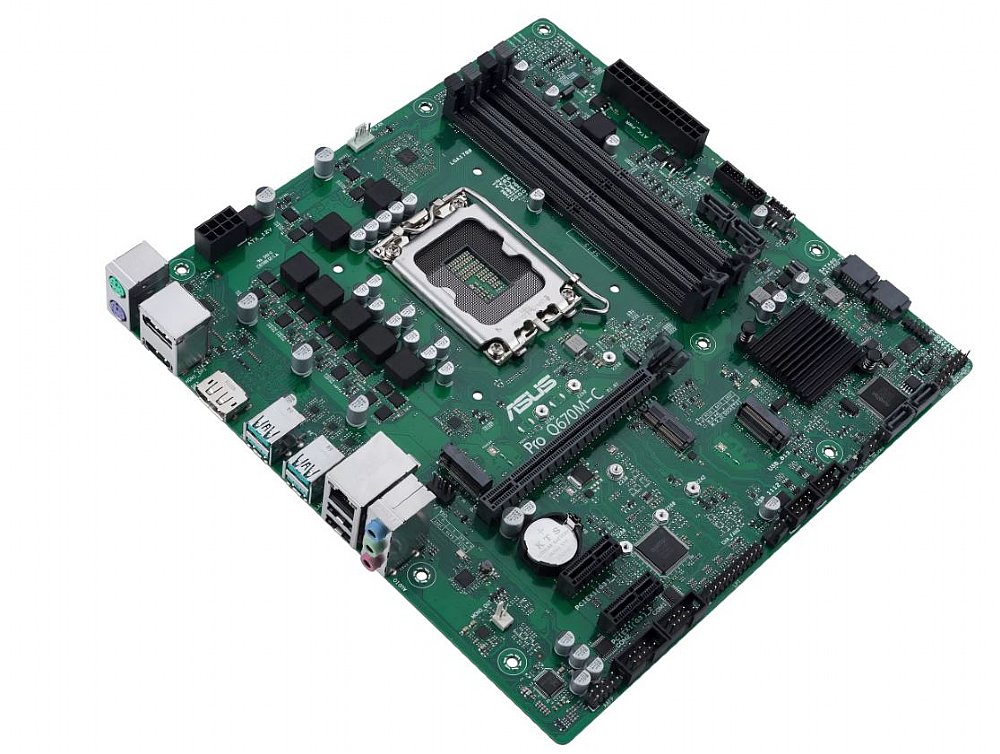

ASUS Pro Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability

Interfaces/Ports: DisplayPort x2, HDMI x 1
Chipset: Intel Q670
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 195553518383
Form Factor: MATX
Powered by 12th Generation Intel Core and EVO VPro processors, ASUS Pro Q670M-C-CSM business motherboard provides enhanced enterprise level features, including comprehensive system protection, 24/7 stability & reliability and an improved management suite ASUS Control Center Express to smooth your IT operations.
Product Details
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS Q670 micro-ATX motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro Intel Micro-ATX motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

ASUS SHIELD
Enhances system security from bottom to top
ASUS Boot Defender
ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect, detect and recover the boot environment against any intrusions and attacks.
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
NIST SP 800-193 Compliant
ASUS Business motherboard with ASUS Boot Defender adheres to the National Institute of Standards and Technology (NIST) Platform Firmware Resiliency guidelines to protect against potentially destructive attacks.
Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

Spec
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Q670 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Optimem II

*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
2 x DisplayPort**

1 x HDMI®***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel® Q670 Chipset

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode

Intel® Q670 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.

USB


4 x USB 3.2 Gen 2 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)


Front USB:Total 7 ports
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

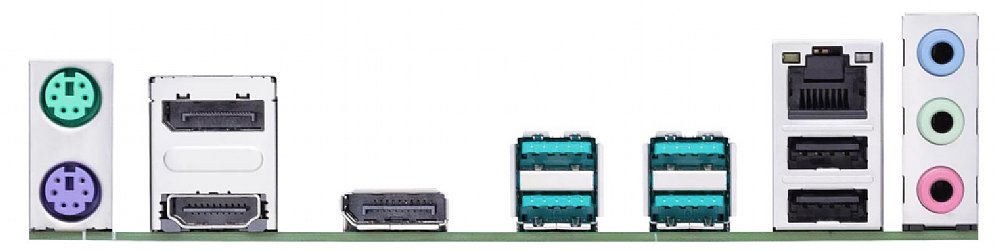

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMI® port

3 x Audio jacks

1 x Intel® 1Gb Ethernet

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

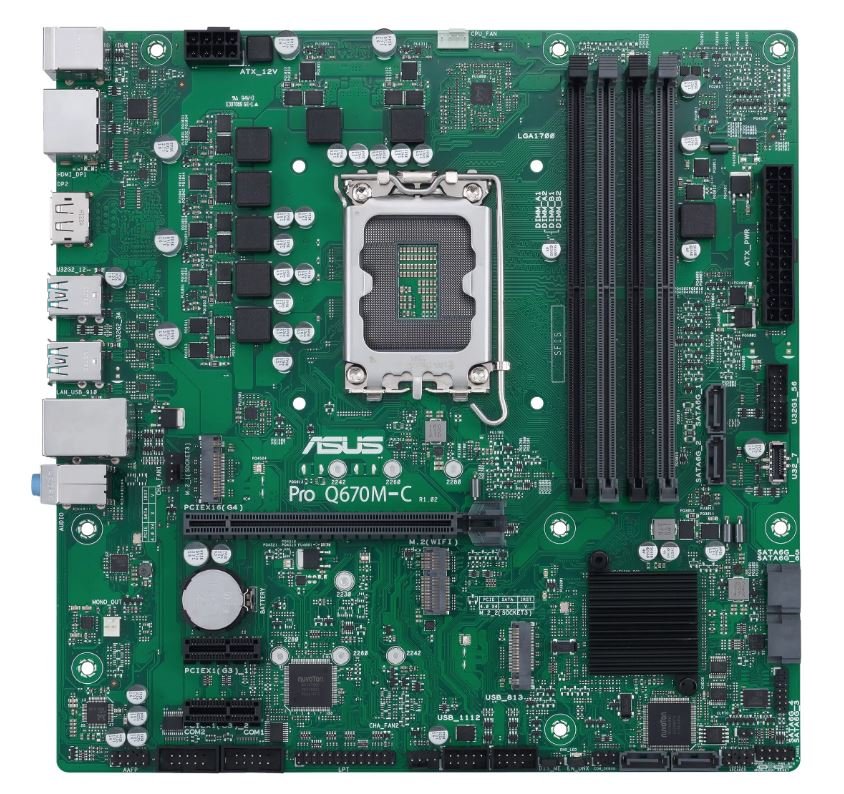

Internal I/O Connectors
Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x Speaker header

1 x 10-1 System Panel header
Special Features
ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- ASUS Boot Defender

- Q-LED Core

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

TPM 2.0 IC onboard
Software Features
ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM
Manageability
WOL by PME, PXE

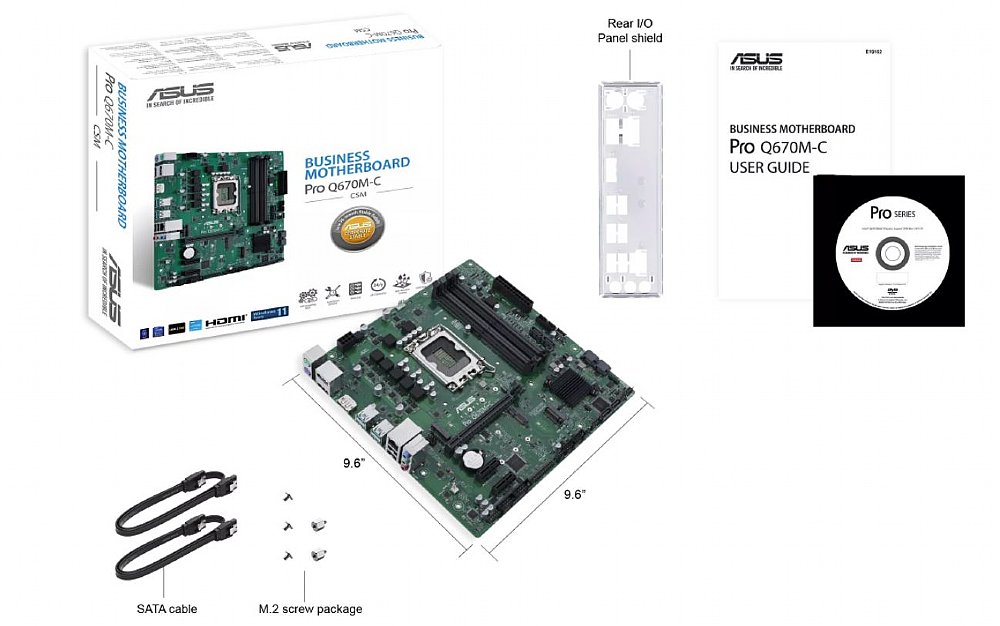

Accessories
Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
microATX
24.4cm x 24.4cm
Weight: 3 lbs
