General Information
Manufacturer: Corsair
Manufacturer Part Number: CP-9020264-NA
Manufacturer Website Address: www.corsair.com/us/
Brand Name: Corsair
Product Model: RPS0158

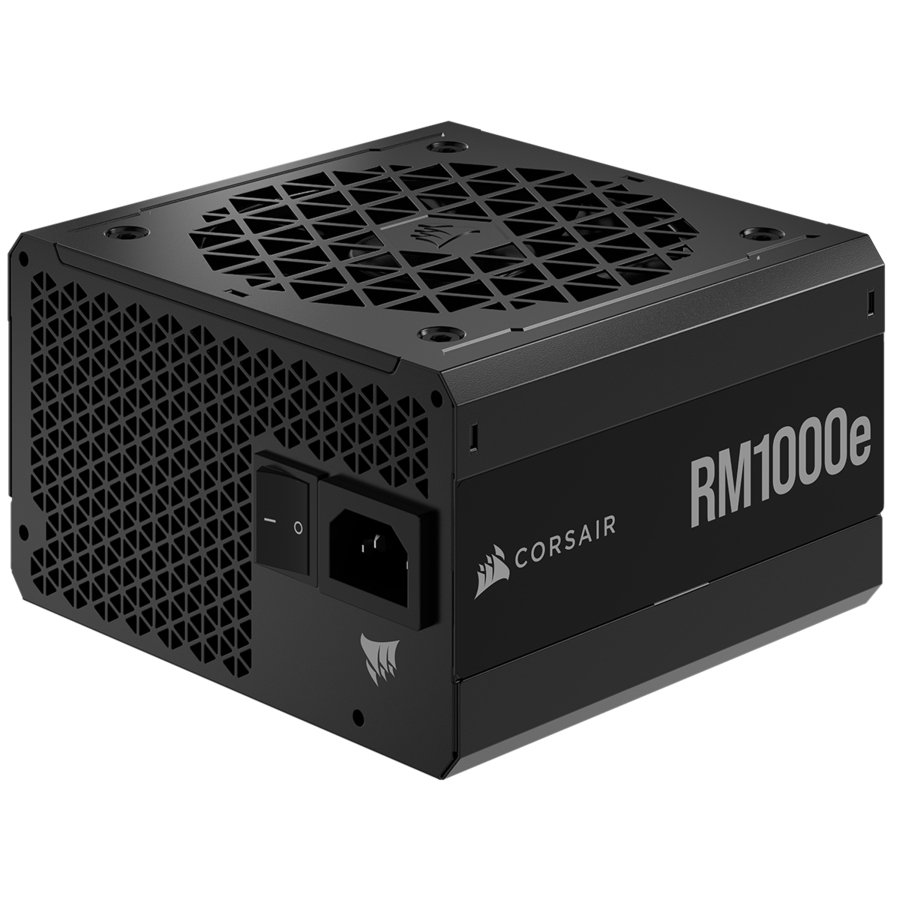

Product Name: RMe Series RM1000e Fully Modular Low-Noise ATX Power Supply
Marketing Information:
RMe SERIES | FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES | STEADY POWER FOR YOUR SYSTEM | FULLY MODULAR CABLING

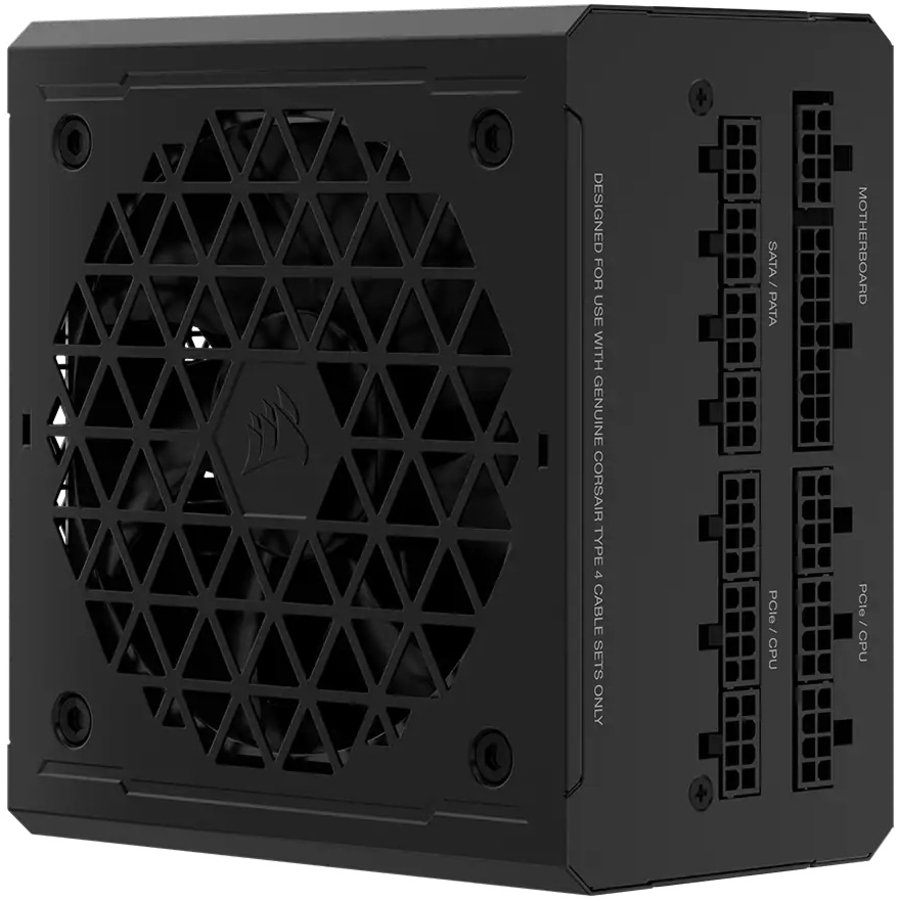

Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
TUNED FOR LOW NOISE OPERATION
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
With Zero RPM Fan Mode for near-silent operation at lower loads.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Product Type: Power Supply
Technical Information
Specification Compliance: ATX12V
Specification Compliance: EPS12V
Efficiency: 90%
Number of Fans: 1
Modular: Yes
Power Description
Number of +12V Rails: 1
Output Voltage: 3.3 V DC @ 20 A
Output Voltage: -12 V DC @ 0.3 A
Output Voltage: 12 V DC @ 83.3 A
Output Voltage: 5 V DC @ 20 A
Output Voltage: 5 V DC @ 3 A
Output Power: 1000 W
Physical Characteristics
Form Factor: Internal
Height: 3.4"
Width: 5.9"
Depth: 5.5"
Weight (Approximate): 3.66 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: 80 Plus Gold
Warranty
Limited Warranty: 7 Year
