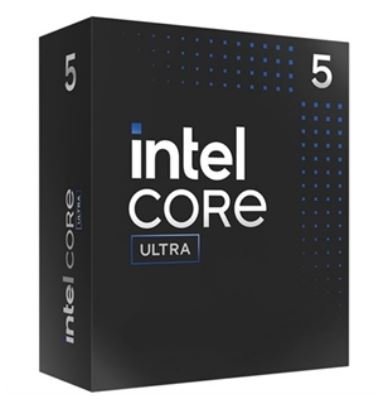

Intel Core Ultra 5 processor 225F 10 Core 10 Thread 20M Cache, up to 4.90 GHz FCLGA18W (cooler included) No onboard video

Name: Intel Core Ultra 5 processor 225F 10 Core 10 Thread 20M Cache, up to 4.90 GHz FCLGA18W (cooler included) No onboard video
Brand: Intel
SKU: CPUIU5R225F
Price: 239.99 USD
Availability: InStock

CPU Socket: LGA 1851

CPU Type: Intel Core Ultra 5

CPU Generation: 15th Generation

MPN: BX80768225F

Brand: Intel

UPC/EAN: 735858550840

Intel Core Ultra 5 processor 225F 10 Core 10 Thread 20M Cache, up to 4.90 GHz FCLGA18W

Product Details

Intel® Core™ Ultra 5 Processor 225F Specifications

General Information

Product Collection	Intel® Core™ Ultra Processors (Series 2)
Code Name	Arrow Lake
Vertical Segment	Desktop
Processor Number	225F
Overall Peak TOPS (Int8)	19

Launch Date	Q1'25
Marketing Status	Launched

CPU Specifications

Total Cores	10 (6 Performance-cores + 4 Efficient-cores)
Total Threads	10
Max Turbo Frequency	4.9 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core Base Frequency	3.3 GHz
Efficient-core Base Frequency	2.7 GHz
Cache	20 MB Intel® Smart Cache
Total L2 Cache	22 MB
Processor Base Power	65 W
Maximum Turbo Power	121 W
CPU Lithography	TSMC N3B
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Memory Specifications

Max Memory Size	192 GB (dependent on memory type)
Memory Types	Up to DDR5 6400 MT/s
Max # of Memory Channels	2

NPU (Neural Processing Unit) Specifications

NPU Name	Intel® AI Boost
NPU Peak TOPS (Int8)	13
Sparsity Support	Yes
Windows Studio Effects Support	Yes
AI Software Frameworks Supported by NPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Intel® Thunderbolt™ 4	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes	24

Package Specifications

Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2022C
Max Operating Temperature	105 °C

Advanced Technologies

Intel® Volume Management Device (VMD)	Yes
Intel® Gaussian & Neural Accelerator	3.5
Intel® Thread Director	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes

Security & Reliability

Intel® Standard Manageability (ISM)	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel® OS Guard	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes
