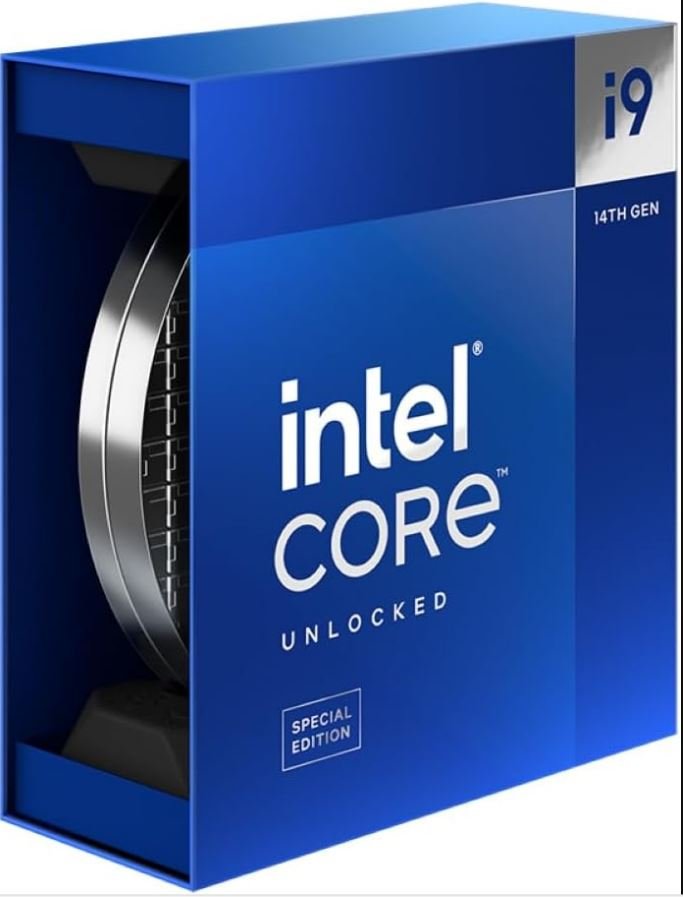

Intel Core i9-14900KS 14th Gen (36M Cache) LGA1700 Desktop Processor (Up to 6.20 GHz Turbo) | CPU Cooler Required

Intel Core i9 Special Edition Processor Specifications:

- Total Cores: 24

- # of Performance-cores: 8

- # of Efficient-cores: 16

- Total Threads: 32

- Max Turbo Frequency: 6.2 GHz

- Intel® Thermal Velocity Boost Frequency: 6.2 GHz

- Intel® Turbo Boost Max Technology 3.0 Frequency: 5.9 GHz

- Performance-core Max Turbo Frequency: 5.7 GHz

- Efficient-core Max Turbo Frequency: 4.5 GHz

- Performance-core Base Frequency: 3.2 GHz

- Efficient-core Base Frequency: 2.4 GHz

- Cache: 36 MB Intel® Smart Cache

- Total L2 Cache: 32 MB

- Processor Base Power: 150 W

- Maximum Turbo Power: 253 W

- Marketing Status: Launched

- Launch Date: Q1'24

- Embedded Options Available: No

Intel Core i9 Special Edition Unlocked Processor Memory Specifications:

- Max Memory Size (dependent on memory type): 192 GB

- Memory Types: Up to DDR5 5600 MT/s and Up to DDR4 3200 MT/s

- Max # of Memory Channels: 2

- Max Memory Bandwidth: 89.6 GB/s

- ECC Memory Supported: Yes

GPU Specifications:

- GPU Name: Intel® UHD Graphics 770

- Graphics Base Frequency: 300 MHz

- Graphics Max Dynamic Frequency: 1.65 GHz

- Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

- Execution Units: 32

- Max Resolution (HDMI): 4096 x 2160 @ 60Hz

- Max Resolution (DP): 7680 x 4320 @ 60Hz

- Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

- DirectX* Support: 12

- OpenGL* Support: 4.5

- OpenCL* Support: 3.0

- Multi-Format Codec Engines: 2

- Intel® Quick Sync Video: Yes

- Intel® Clear Video HD Technology: Yes

- # of Displays Supported: 4

- Device ID: 0xA780

Advanced Technologies:

- Intel® Gaussian & Neural Accelerator: 3.0

- Intel® Thread Director: Yes

- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

- Intel® Speed Shift Technology: Yes

- Intel® Adaptive Boost Technology: Yes

- Intel® Thermal Velocity Boost: Yes

- Intel® Turbo Boost Max Technology 3.0: Yes

- Intel® Turbo Boost Technology: 2.0

- Intel® Hyper-Threading Technology: Yes

- Intel® 64: Yes

- Instruction Set: 64-bit

- Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

- Idle States: Yes

- Enhanced Intel SpeedStep® Technology: Yes

- Thermal Monitoring Technologies: Yes

- Intel® Volume Management Device (VMD): Yes

Intel Core i9 Special Edition Processor Security & Reliability:

- Intel vPro® Eligibility: Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform

- Intel® Threat Detection Technology (TDT): Yes

- Intel® Active Management Technology (AMT): Yes

- Intel® Standard Manageability (ISM): Yes

- Intel® Remote Platform Erase (RPE): Yes

- Intel® One-Click Recovery: Yes

- Intel® Hardware Shield Eligibility: Yes

- Intel® Control-Flow Enforcement Technology: Yes

- Intel® Total Memory Encryption - Multi Key: Yes

- Intel® AES New Instructions: Yes

- Secure Key: Yes

- Intel® OS Guard: Yes

- Intel® Trusted Execution Technology: Yes

- Execute Disable Bit: Yes

- Intel® Boot Guard: Yes

- Mode-based Execute Control (MBEC): Yes

- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes

- Intel® Virtualization Technology (VT-x): Yes

- Intel® Virtualization Technology for Directed I/O (VT-d): Yes

- Intel® VT-x with Extended Page Tables (EPT): Yes
