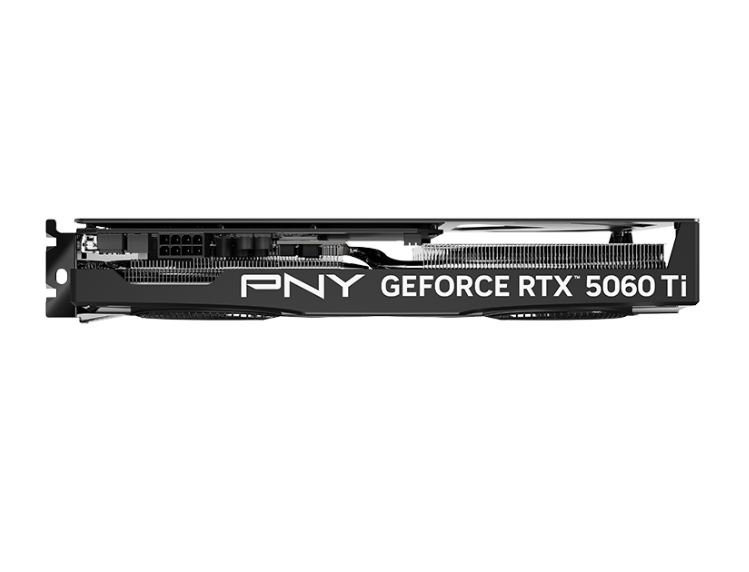

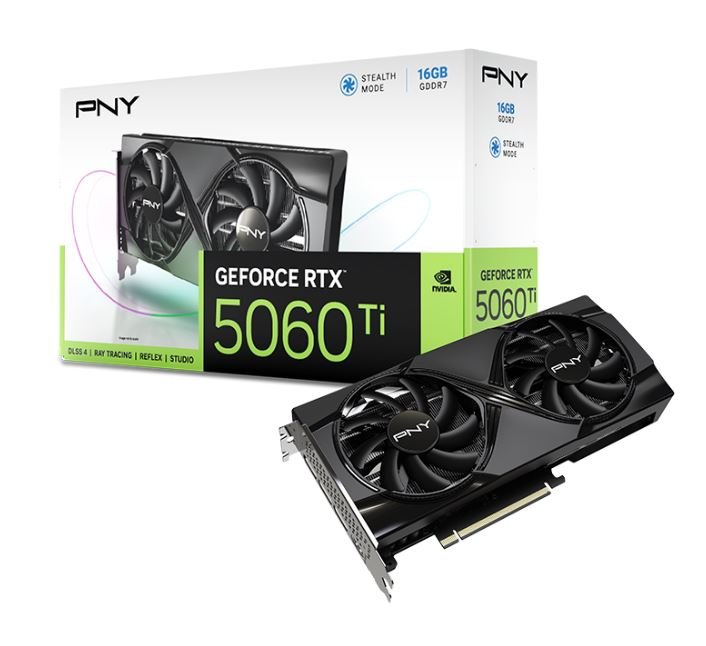

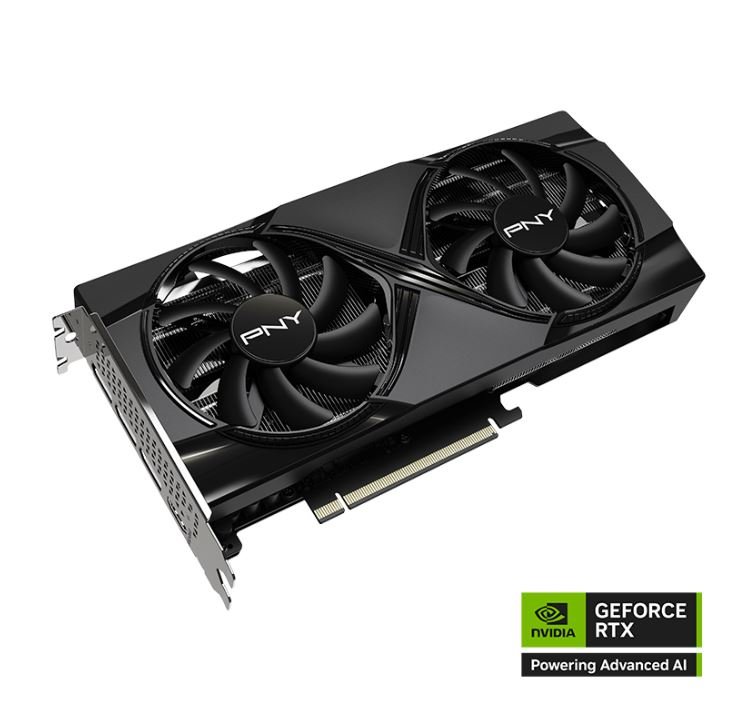

PNY GeForce RTX 5060 Ti 16GB Dual Fan GPU

Name: PNY GeForce RTX 5060 Ti 16GB Dual Fan GPU
Brand: PNY
SKU: VCNRTX5060TI16-VCG5060T16DFXPB1
Price: 599.99 USD
Availability: InStock

Interfaces/Ports: 3 x DisplayPort - 1 x HDMI

Video Chipset: RTX 5060Ti 16GB

MPN: VCG5060T16DFXPB1

Brand: PNY

Memory Size: 16GB

Memory Technology: GDDR7

UPC/EAN: 751492795096

PNY GeForce RTX™ 5060 Ti 16GB - Game-Changing Performance!

Experience high FPS gaming with DLSS 4, accelerate creativity with NVIDIA Studio, and unlock AI power with the Blackwell-powered PNY RTX™ 5060 Ti. Features 16GB GDDR7, 4608 CUDA Cores, and multiple display outputs.

Level up your game and create without limits!

Click here to learn more!

Product Details

PNY GeForce RTX 5060 Ti 16GB Dual Fan GPU

SKU: VCG5060T16DFXPB1 - Get game-changing performance with the PNY GeForce RTX 5060 Ti, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

Features

NVIDIA Blackwell Architecture
16GB GDDR7 Memory
3x Display Port 1x HDMI
4608 CUDA® Cores
180 W Max Power Consumption

PNY Part Number

VCG5060T16DFXPB1

UPC Code

751492795096

Architecture

Blackwell

CUDA® Cores

4608

Clock Speed

2407 MHz

Boost Speed

2572 MHz

Don't just play the game, dominate it. Create without limits. Experience the future of graphics with the PNY GeForce RTXâ„¢ 5060 Ti 16GB Dual Fan GPU!

Click here to add to cart and experience the Blackwell difference!

Key Features

Architecture: Powered by the latest NVIDIA Blackwell architecture for enhanced performance and efficiency.
Memory: Equipped with 16GB of high-speed GDDR7 memory, enabling smooth handling of demanding applications and games.
Display Outputs: Offers versatile connectivity with three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting multiple high-resolution displays.
CUDA Cores: Features 4608 CUDA cores, providing significant parallel processing power for accelerated tasks.
Power Efficiency: Designed for efficient operation with a maximum power consumption of 180W.

Detailed Specifications

Category	Specification
Product Identification
PNY Part Number	VCG5060T16DFXPB1
UPC Code	751492795096
Core Architecture
Architecture	Blackwell
CUDA Cores	To Be Determined (TBD)
Base Clock Speed	2407 MHz
Boost Clock Speed	2572 MHz
Memory Subsystem
Memory Speed	28 Gbps
Memory Size	16 GB GDDR7
Memory Interface	128-bit
Memory Bandwidth	448 GB/sec
Power and Physical
Thermal Design Power (TDP)	180W
NVLink Support	Not Supported
Power Input	Requires one 8-pin supplementary power connector.
Bus Type	PCI-Express 5.0 x8
Card Dimensions	9.65" x 4.72" x 1.57"; Dual-slot form factor.
Box Dimensions	12.68" x 7.05" x 2.76" / 322x179x70mm
Display Capabilities

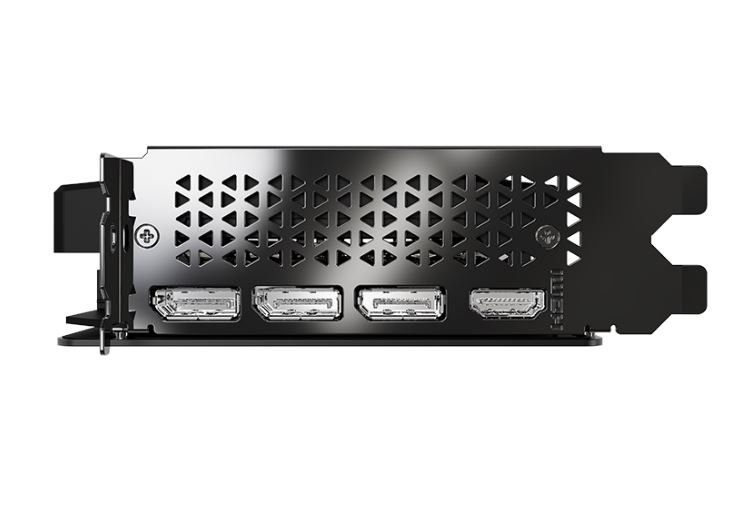

Outputs	3x DisplayPort 2.1b, 1x HDMI 2.1b
Maximum Multi-Screen Support	Up to 4 displays.
Maximum Digital Resolution	7680x4320 at 165Hz.
High Refresh/Resolution Notes	Supports up to 4K 12-bit HDR at 240Hz via DP 1.4b + DSC or HDMI 2.1b + DSC. Also supports up to 8K 12-bit HDR at 60Hz via DP 1.4a + DSC or HDMI 2.1a + DSC.
System Requirements
Motherboard	PCI Express-compliant motherboard with one available dual-width x8 graphics slot.
Power Connector	One 8-pin supplementary power connector.
Graphics Power	Minimum total graphics power requirement of 180W.
System Power	Recommended system power supply of 600W (actual requirement may vary based on other system components).
Operating System	Microsoft Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit.
Internet Connection	Required for driver installation via the NVIDIA App. (Note: Graphics card driver is not included in the box.)

Important Warnings:
California Proposition 65 Warning: This product contains chemicals, including lead, known to the State of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov.
Advertencia sobre la Proposici³n 65 de California: Este producto contiene productos qumicos reconocidos incluido el plomo reconocidos por el estado de California que provocan c¡ncer o da±os reproductivo, defectos de nacimiento u otros da±os reproductivos. Para obtener m¡s informaci³n: www.P65Warnings.ca.gov.

© 2025 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce RTX, and G-SYNC are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

Weight: 4 lbs
