Product Overview

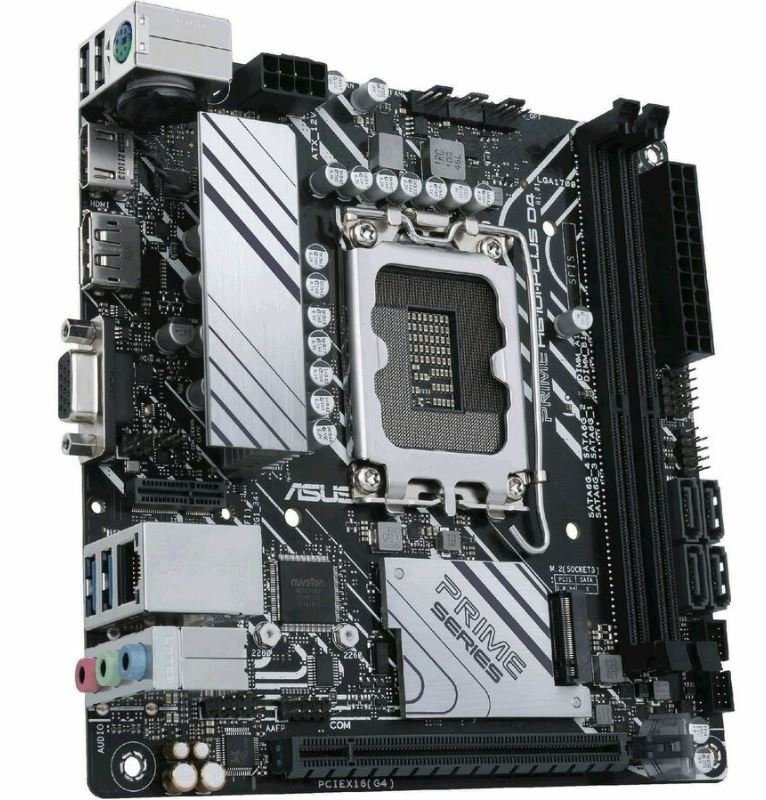

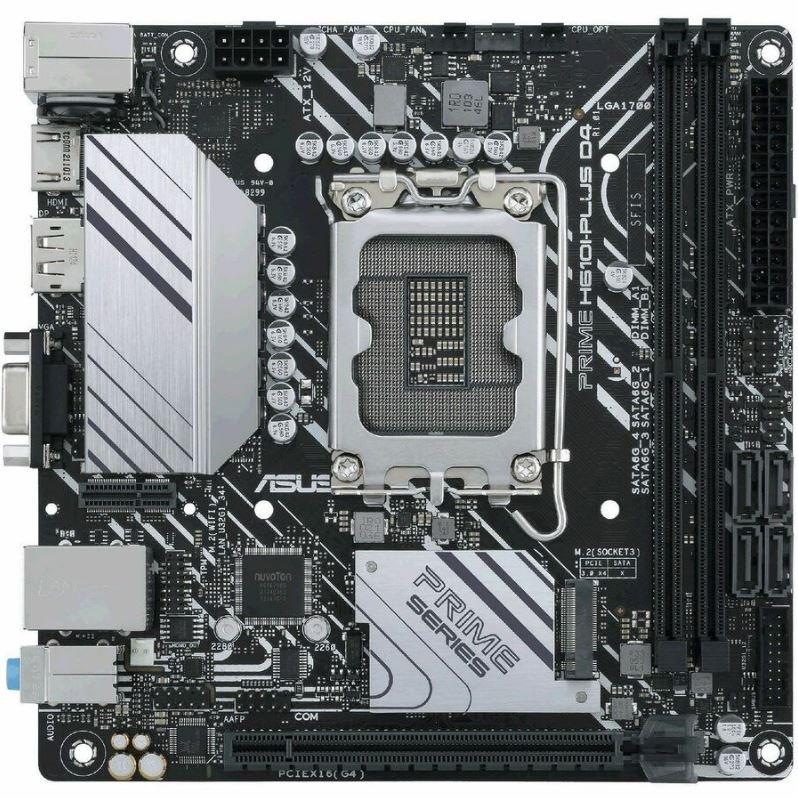

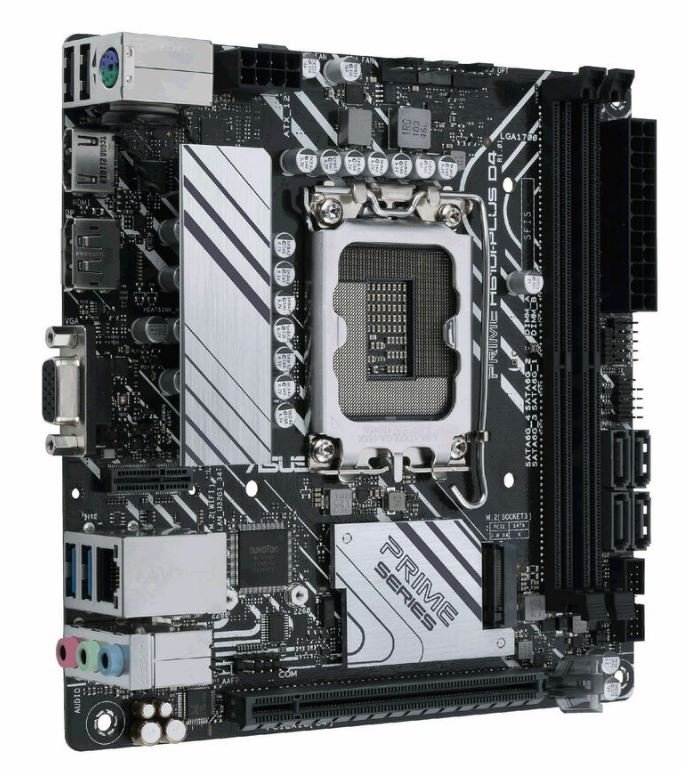

The Asus Prime PRIME H610I-PLUS D4-CSM is a compact Mini ITX desktop motherboard designed for Intel LGA-1700 socket processors, including Pentium Gold, Celeron, and Core series (12th, 13th, and 14th Generation). Built with the Intel H610 chipset, this motherboard supports up to 64 GB of DDR4 SDRAM via two DIMM/UDIMM memory slots. It features Gigabit Ethernet, HDMI, DisplayPort, and four SATA interfaces for storage connectivity.

Key Features

• Form Factor: Mini ITX (6.7" x 6.7")
• Chipset: Intel H610
• CPU Socket: LGA-1700
• Supported Processors: Intel Pentium Gold, Celeron, Core (12th, 13th, and 14th Gen)
• Memory:
  • 2 x DDR4 SDRAM slots (DIMM/UDIMM)
  • Maximum 64 GB capacity
  • Supported speeds: 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz
• Expansion Slots: 1 x PCI Express 4.0 x16
• Storage:
  • 4 x SATA III (6 Gb/s) interfaces
  • 1 x M.2 interface
• Video: CPU Dependent (HDMI 2.1, DisplayPort)
• Audio: 7.1 Channel
• Networking: Gigabit Ethernet (RJ-45)
• USB Ports:
  • 2 x USB 3.2 Gen 1 Type-A (rear)
  • 2 x USB 2.0 (rear)
  • 2 x USB 2.0 (onboard)
• Rear Panel Connectors:
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 1 x HDMI 2.1
  • 1 x DisplayPort
  • 1 x Gigabit Ethernet (RJ-45)
  • Audio jacks
• Onboard Connectors:
  • 4 x SATA III (6 Gb/s)
  • 1 x M.2 slot
  • 2 x USB 2.0 headers
  • Other internal headers for front panel, audio, etc.
• ASUS Corporate Stable Model (CSM):
  • Up to 36-month product lifecycle support
  • 6-month end-of-life notice
  • Includes ASUS Control Center Express for IT management.
• ASUS Control Center Express: Integrated IT monitoring and management software for device control, automated maintenance (BIOS, software updates), and secure endpoint management.
• Cooling Features: VRM heatsink with thermal pad, multiple temperature sensors, Fan Xpert software and UEFI BIOS fan controls.
• UEFI BIOS: Intuitive interface with both simplified and advanced modes for system configuration and tuning.
• Energy Efficiency: Energy Processing Unit (EPU) for optimized power consumption.

Manufacturer Information

• Manufacturer: ASUS Computer International
• Part Number: PRIME H610I-PLUSD4-CSM
• Website: http://usa.asus.com
• Brand: Asus
• Product Line: Prime
• Product Model: PRIME H610I-PLUS D4-CSM
• Product Name: PRIME H610I-PLUSD4-CSM Desktop Motherboard

Package Contents

• PRIME H610I-PLUSD4-CSM Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Screw Package
• 1 x Vertical M.2 Key E bracket set
• 1 x Support DVD
• 1 x User guide
