ASUS PRIME B860M-A WIFI-CSM MATX Socket 1851

Name: ASUS PRIME B860M-A WIFI-CSM MATX Socket 1851
Brand: ASUS
SKU: MB18B860-PRIME B860M-A WIFI-CSM
Price: 169.99 USD
Availability: InStock

Interfaces/Ports: HDMI, DisplayPort

Chipset: Intel B860

CPU Socket: LGA 1851

# of Memory Slots: 4

CPU Generation: 15th Generation

MPN: PRIME B860M-A WIFI-CSM

Brand: ASUS

Memory Technology: DDR5

UPC/EAN: 197105806290

Form Factor: MATX

ASUS PRIME B860M-A WIFI-CSM B860 LGA 1851 mATX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 7+1+1+1 stage, DDR5, PCIe 5.0 x16, HDMI, USB 20Gbps Type-C , 2x M.2, WiFi 6E, 2.5Gb LAN

Product Details

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Coreâ„¢ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Itâ€™s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Key Specifications

CPU: Supports Intel® Coreâ„¢ Ultra Processors (Series 2), LGA1851 socket
Chipset: Intel® B860
Memory: 4 x DIMM slots, max. 256GB, DDR5 (up to 8666+MT/s OC)
Storage: 2 x M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4), 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
Networking: Realtek 2.5Gb Ethernet, Wi-Fi 6E (2x2), Bluetooth 5.3
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

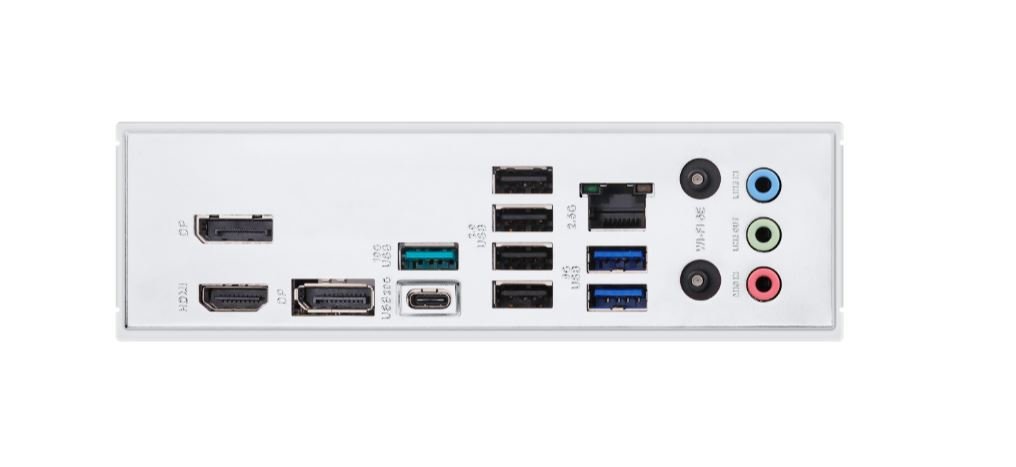

USB Ports:
- Rear: 1 x USB 20Gbps (Type-C), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
- Front Panel: 1 x USB 10Gbps (Type-C)
Display Outputs: 2 x DisplayPort, 1 x HDMI
Form Factor: Micro-ATX
