ASUS STRIX Z890-A GAMING WiFi Z890 LGA 1851 ATX Motherboard, Intel® Core Ultra Series 2 Ready, Advanced AI

ASUS ROG STRIX Z890-A GAMING WIFI Motherboard

Latest News & Updates:

• 2024/10/24: A new BIOS has been released to address various bugs, including a "no display" issue from the graphics card when installing Windows 11 24H2. Update directly using the ZIP file and the new EZ Flash tool from the ASUS website.
• Latest specifications and news: https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/spec/

Key Features:

• CPU: Supports Intel® Core Ultra Processors (Series 2) and Intel® Turbo Boost Technology 2.0 & 3.0
• Chipset: Intel® Z890
• Memory: 4 x DDR5 DIMM slots, up to 192GB, 9066+MT/s (OC), XMP support, AEMPIII
• Graphics: DisplayPort (8K@60Hz), HDMI 2.1 (4K@60Hz), 2 x Thunderbolt 4 ports with DisplayPort and Thunderbolt video output
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
• Storage: 5 x M.2 slots (various speeds and protocols), 4 x SATA 6Gb/s ports
• Networking: Intel® 2.5Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4

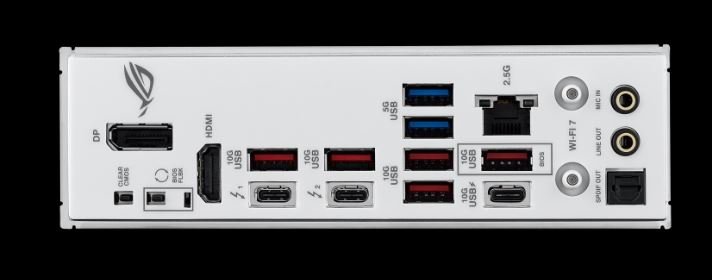

• USB: 10 rear ports (Thunderbolt 4, USB 10Gbps, USB 5Gbps), 7 front ports (USB 20Gbps, USB 5Gbps, USB 2.0)
• Audio: ROG SupremeFX 7.1 Surround Sound (ALC4080 codec)
• Form Factor: ATX (12 inch x 9.6 inch)
• Operating System: Windows 11 (22H2 or later)

Additional Features:

• ASUS Q-Design: Q-Latch, Q-Release, Q-Slide, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot for easy installation and upgrades.
• ASUS Thermal Solution: M.2 heatsink backplate and M.2 heatsink for optimal cooling.
• ASUS EZ DIY: BIOS FlashBack button, Clear CMOS button, pre-mounted I/O shield for hassle-free setup.
• Aura Sync: Addressable Gen 2 headers for RGB lighting customization.
• Comprehensive Software Suite: Armoury Crate, AI Overclocking Guide, Fan Xpert 4, and more.

Important Notes:

• Refer to the ASUS website for the latest CPU and memory support list.
• Ensure your monitor is connected to the HDMI port or a dedicated graphics card during OS installation.
• Wi-Fi 7 functionality depends on the operating system and regional regulations.
• A chassis with a front panel HD audio module is needed for 7.1 surround sound.

This information is based on the provided specifications. Always refer to the official ASUS website and documentation for the most accurate and up-to-date details.
