| Feature | Description |
| CPU | * Support Intel® Core Ultra Processors (Series 2), LGA1851 * Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z890 Chipset |
| Memory | * 4 x DIMM slots, max. 192GB, DDR5 * Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) * Dual channel memory architecture * DIMM Fit * Supports Intel® Extreme Memory Profile (XMP) memory module * ASUS Enhanced Memory Profile III(AEMPIII) |
| Graphics | * 1 x DisplayPort * 1 x HDMI port * 1 x Intel® Thunderbolt 4 port (USB Type-C®) supports DisplayPort and Thunderbolt video outputs * 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
| Expansion Slots | * Intel® Core Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot * Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 4.0 x1 slots |
| Storage | * Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports * Intel® Core Ultra Processors(Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) * Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | * Wi-Fi 7 * 2x2 Wi-Fi 7 (802.11be) * Supports 2.4/5/6GHz frequency band * Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. * Bluetooth® v5.4 |
| USB | * Rear USB (Total 8 ports): 1 x Thunderbolt 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) * Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |

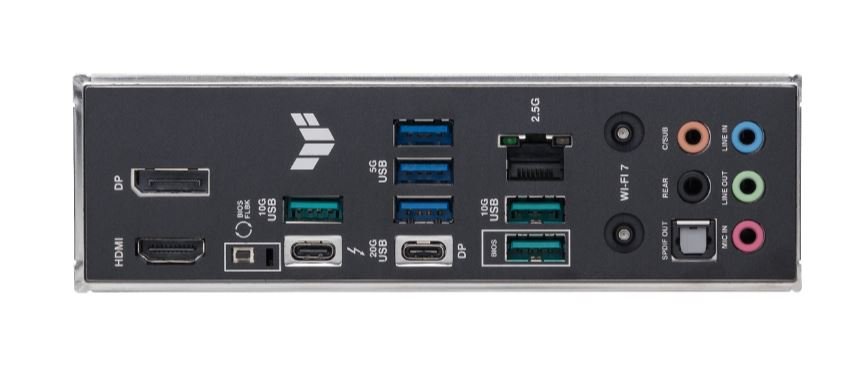

| Back Panel I/O Ports | 1 x Thunderbolt 4 USB Type-C® port, 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button |
| Internal I/O Connectors | Extensive fan, power, storage, and USB headers, as well as addressable Gen 2 headers, Clear CMOS header, Chassis Intrusion header, COM Port header, Front Panel Audio header, Front System Panel header, and Thunderbolt (USB4®) header. |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O), ASUS Q-Design (various Q-features for ease of use and component installation), ASUS Thermal Solution (M.2 heatsinks, VRM heatsink), ASUS EZ DIY (BIOS FlashBack, pre-mounted I/O shield), Aura Sync (Addressable Gen 2 headers) |
| Software Features | Armoury Crate, ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY features (CrashFree BIOS 3, EZ Flash), NPU Boost |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
