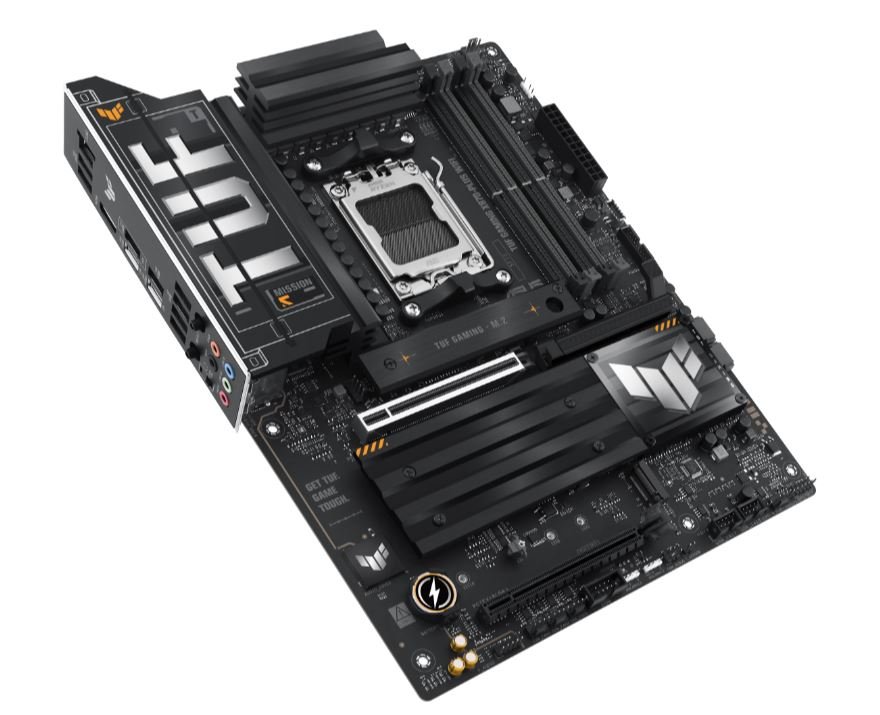

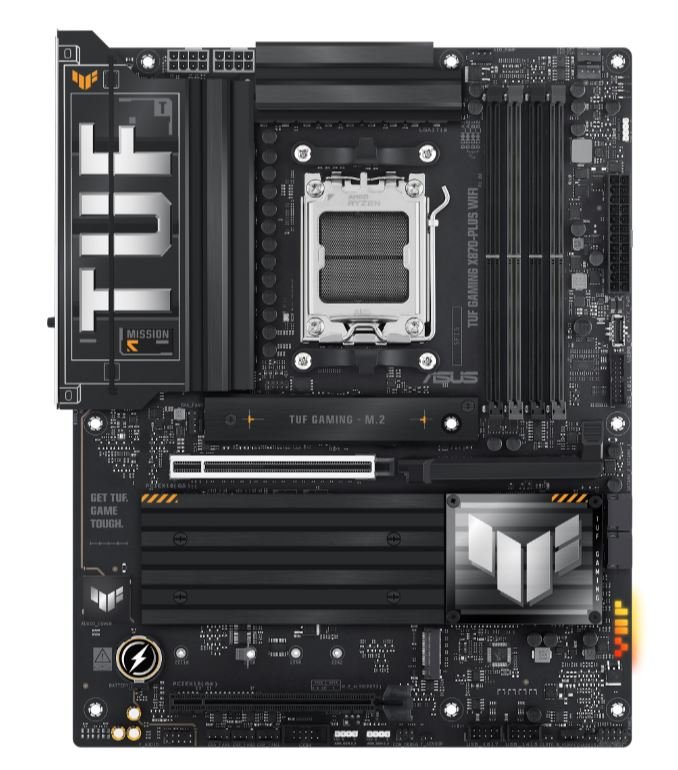

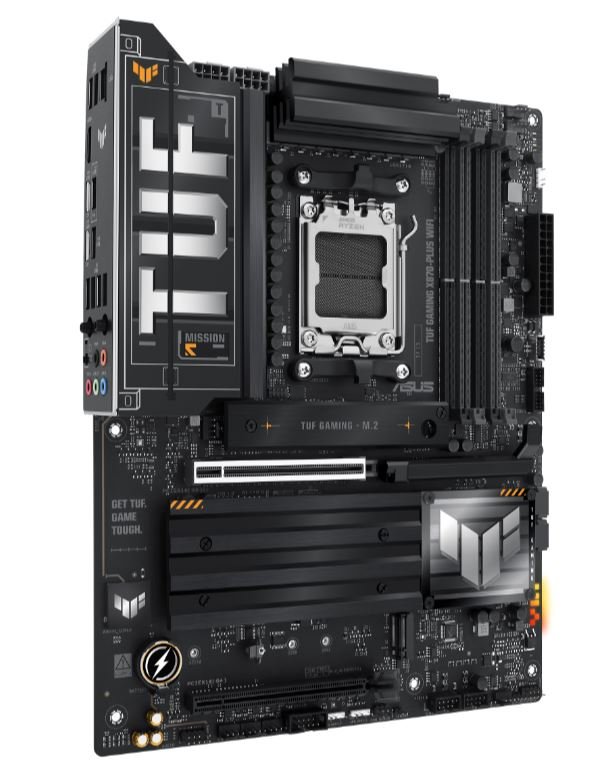

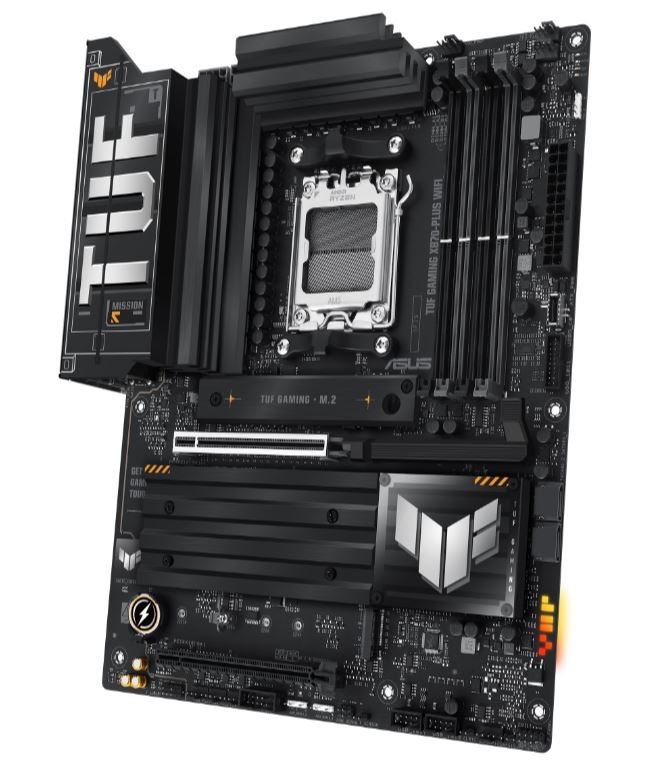

Asus TUF GAMING X870-PLUS WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzenâ„¢ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

TUF GAMING X870-PLUS WIFI

CPU

• AMD Socket AM5 for AMD Ryzenâ„¢ 9000, 8000 & 7000 Series Desktop Processors
• (Note: CPU support list can be found on the ASUS website)

Chipset

• AMD X870 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzenâ„¢ 9000, 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPOâ„¢)
• ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x HDMIâ„¢ port (Supports 4K@60Hz as specified in HDMI 2.1)
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs (Supports max. 4K@60Hz as specified in DisplayPort 1.4a)

Expansion Slots

• AMD Ryzenâ„¢ 9000 & 7000 Series Desktop Processors:
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzenâ„¢ 8000 Series Desktop Processors:
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• AMD Ryzenâ„¢ 9000 & 7000 Series Desktop Processors:
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzenâ„¢ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot not supported
• AMD X870 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth® v5.4

USB

• Rear USB (Total 10 ports)
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 3 x USB 10Gbps ports (3 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

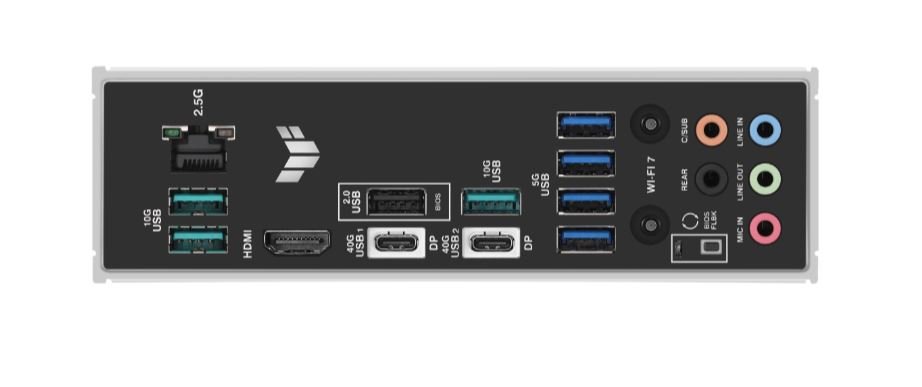

Back Panel I/O Ports

• 2 x USB4® (40Gbps) (2 x USB Type-C®) ports
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x HDMIâ„¢ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBackâ„¢ button

Internal I/O Connectors

• (Includes various headers for fans, cooling, power, storage, USB, and other components)

Special Features

• ASUS TUF PROTECTION (includes various durability features)
• ASUS Q-Design (includes various ease-of-use features)
• ASUS Thermal Solution
• ASUS EZ DIY
• Aura Sync
• Front Panel USB 20Gbps with PD Fast Charge Support

Software Features

• (Includes various ASUS software utilities)

UEFI BIOS

• (Includes various BIOS features)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

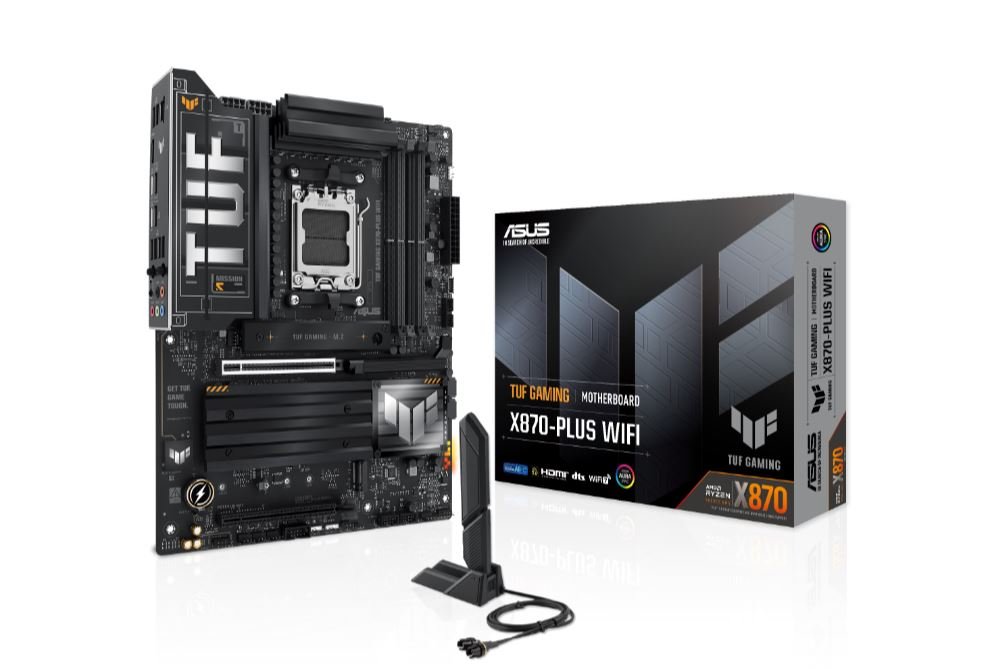

Accessories

• (Includes various cables and accessories)

Operating System

• Windows 11

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
