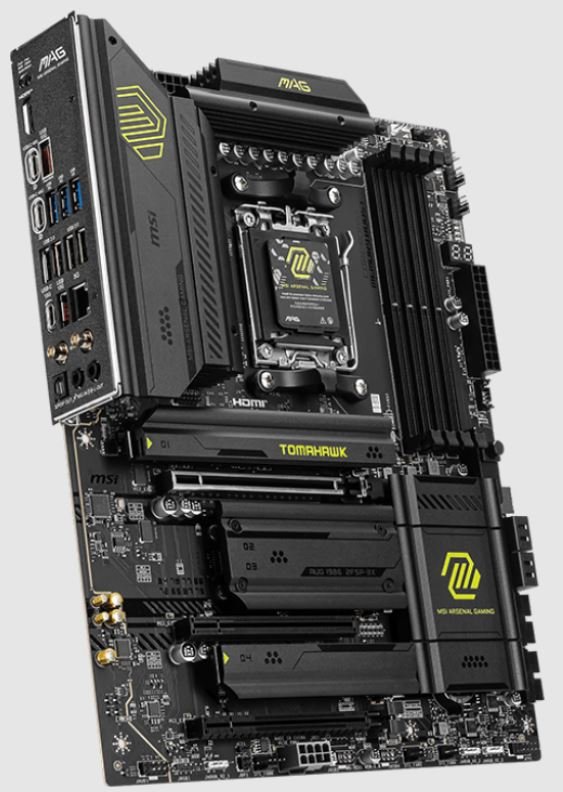

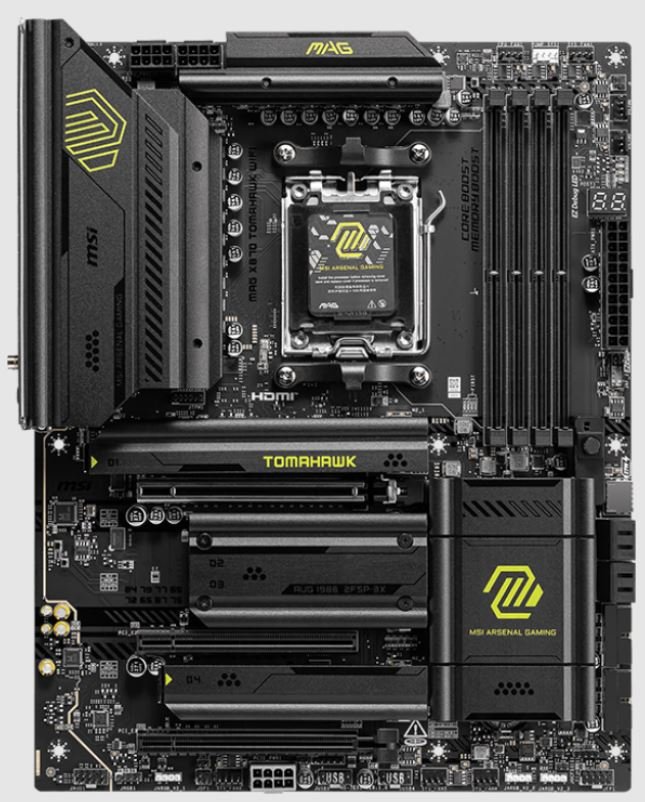

MSI MAG X870 TOMAHAWK WIFI MOTHERBOARD WIFI7

Name: MSI MAG X870 TOMAHAWK WIFI MOTHERBOARD WIFI7
Brand: MSI
SKU: MBAM5-X870TMAHAWKWIFI
Price: 298.88 USD
Availability: InStock

Interfaces/Ports: HDMI

Chipset: AMD X870

CPU Socket: AM5

# of Memory Slots: 4

MPN: X870TMAHAWKWIFI

Brand: MSI

Memory Technology: DDR5

UPC/EAN: 824142380499

Form Factor: ATX

MSI MAG X870 TOMAHAWK WIFI MOTHERBOARD WIFI7

Product Details

MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefied of AMD Ryzenâ„¢ 9000 series processors.

MAG X870 TOMAHAWK WIFI

Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)

Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MSI MAG X870 TOMAHAWK WIFI

Core Features

Chipset: AMD X870
CPU Support: AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket: AM5
Memory:
- 4x DDR5 UDIMM slots, up to 256GB
- Supports DDR5 8400+(OC) / 8200+(OC) / 8000+(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MT/s
- Supports AMD EXPOâ„¢ for easy memory overclocking
- Supports Dual-Channel mode
Onboard Graphics:
- 1x HDMIâ„¢ port (2.1 FRL, up to 8K 60Hz)
- 2x Type-C DisplayPort (USB4®, DisplayPort 1.4 with HBR3, up to 4K 60Hz)
- *Only available with CPUs with integrated graphics*

Expansion Slots

PCIe Slots:
- 1x PCIe 5.0 x16 slot (CPU)
- 1x PCIe 3.0 x1 slot (Chipset)
- 1x PCIe 4.0 x4 slot (Chipset)
M.2 Slots: 4x M.2 slots (see Storage section for details)

Storage

M.2 Slots:
- M2_1: PCIe 5.0 x4 (CPU), supports 22110/2280 devices
- M2_2: PCIe 5.0 x4 (CPU), supports 2280/2260 devices
- M2_3: PCIe 4.0 x2 (Chipset), supports 2280/2260 devices
- M2_4: PCIe 4.0 x4 (Chipset), supports 2280/2260 devices

Audio

Audio Codec: Realtek® ALC4080
Features: 7.1-Channel High-Definition Audio, S/PDIF output

USB

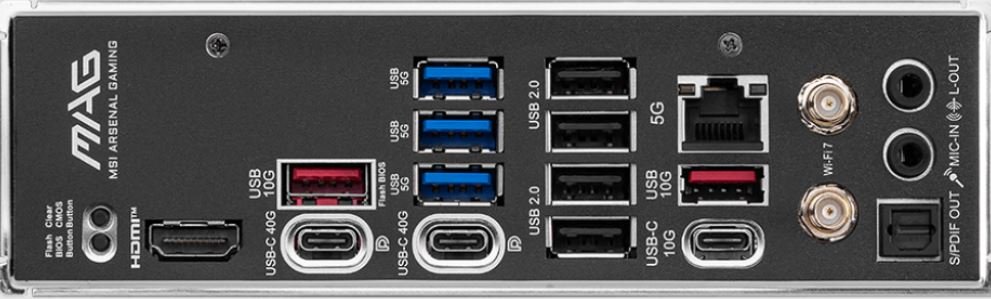

Rear Panel:
- 4x USB 2.0
- 3x USB 5Gbps Type-A
- 2x USB 10Gbps Type-A
- 1x USB 10Gbps Type-C
- 2x USB 40Gbps Type-C
Front Panel:
- 4x USB 2.0
- 4x USB 5Gbps Type-A
- 1x USB 20Gbps Type-C

Networking

LAN: Realtek® 8126-CG 5G LAN
Wireless: Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), MU-MIMO
Bluetooth: Bluetooth® 5.4

Other Features

Multi-GPU: AMD CrossFire support
RAID: Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe drives
Debug LEDs: 4x EZ Debug LEDs, 1x EZ Digit Debug LED

Notes:

Some features (like PCIe lanes and M.2 slot availability) may vary depending on the specific CPU used.
Refer to the official MSI website or the motherboard manual for the most up-to-date and detailed information.

Weight: 5 lbs
