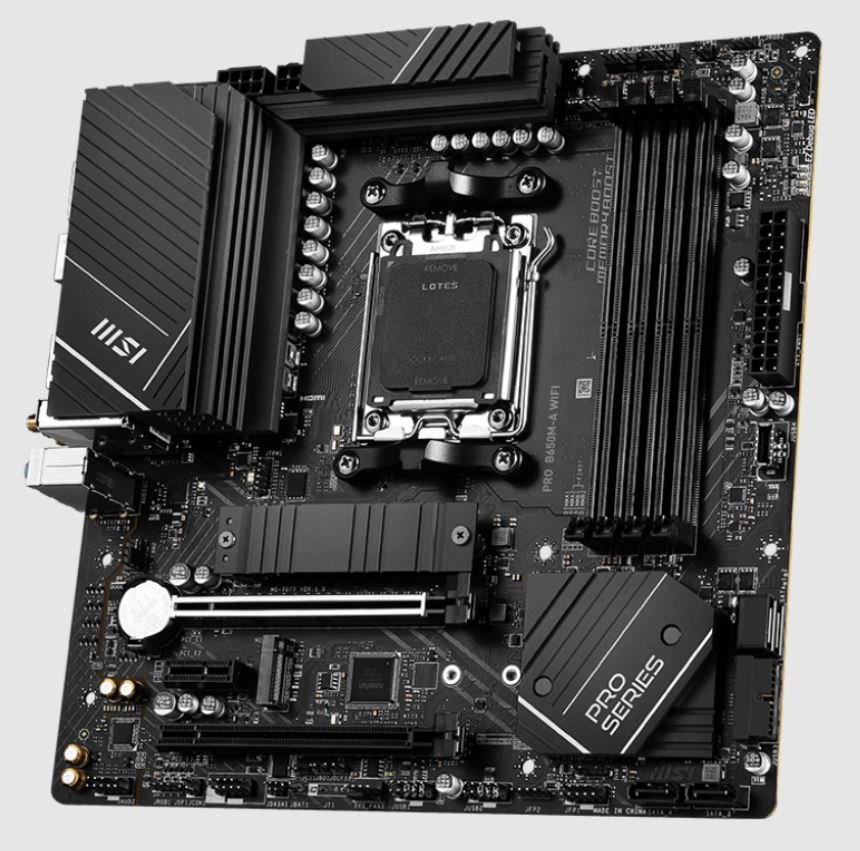

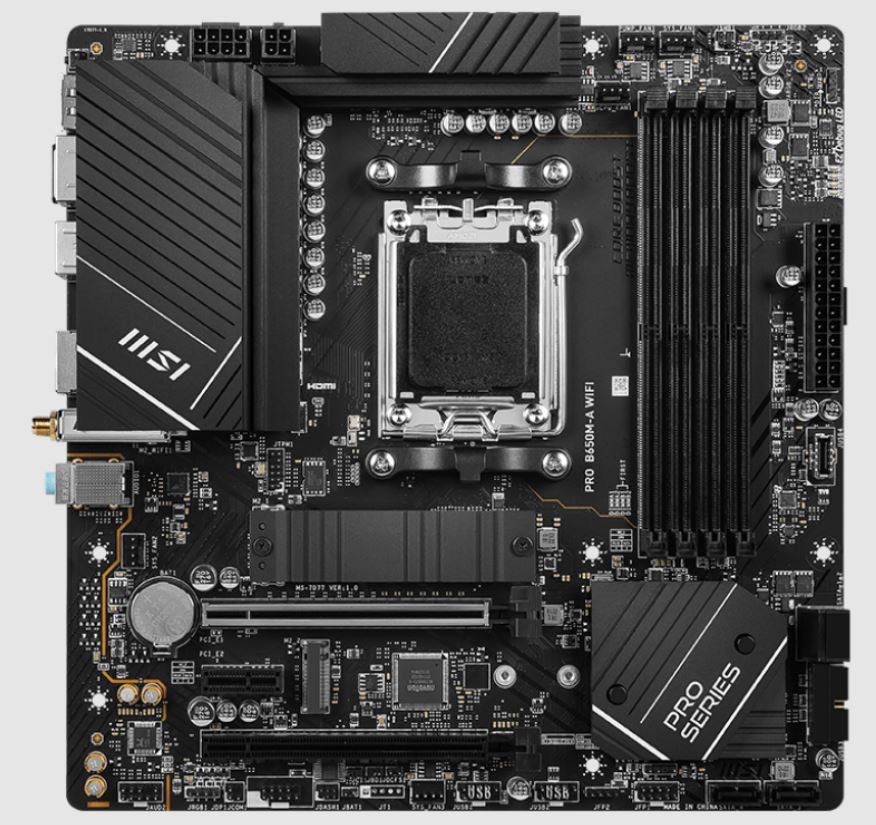

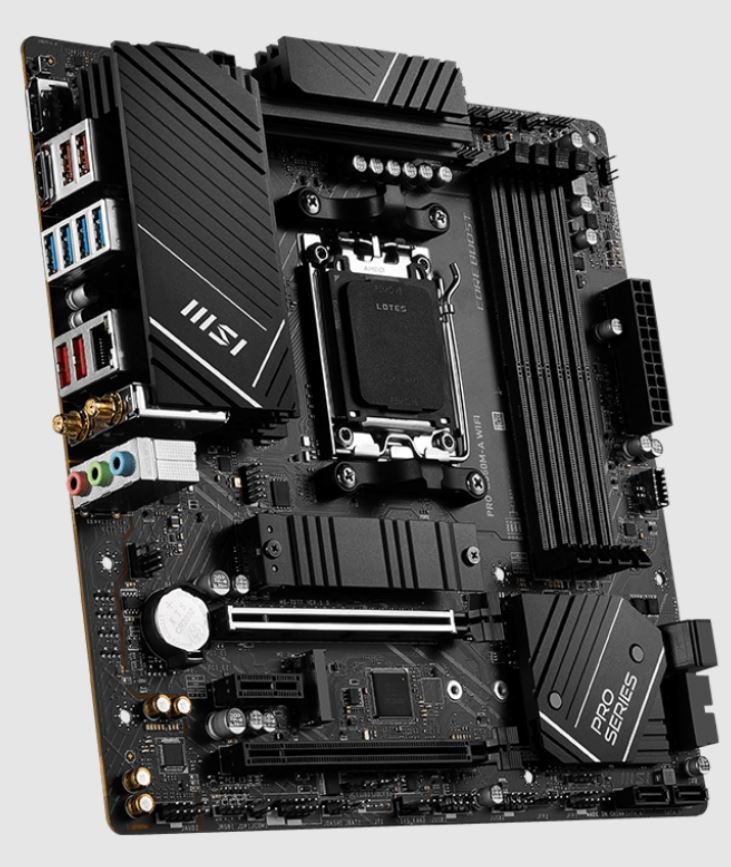

MSI PRO B650M-A WIFI mATX AM5 DDR5

General Information

Manufacturer:   MSI

Manufacturer Part Number:   B650MAWIFI

Manufacturer Website Address:   www.msi.com

Brand Name:   MSI

Product Series:   PRO

Product Model:   B650M-A WIFI

Product Name:   PRO B650M-A WIFI Desktop Motherboard

Marketing Information:

PRO B650M-A WIFI

PRO B650M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

PRO SERIES BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   AMD

Chipset Model:   B650

Total Processor Supported:   1

Processor Socket:   Socket AM5

Processor Supported:   Ryzen 9

Processor Supported:   Ryzen 5

Processor Supported:   Ryzen 7

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   4000 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6400 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   10

RAID Levels:   0

RAID Levels:   1

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3

Total Number of PCI Express Slots:   3

Number of PCI Express x1 Slots:   1

Number of PCI Express x16 Slots:   2

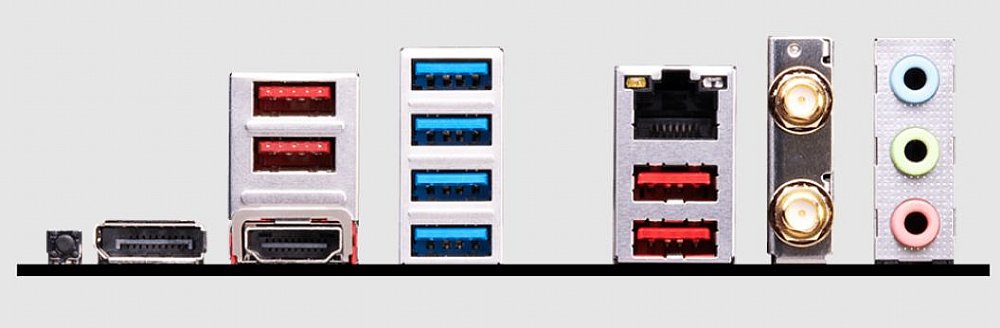

Interfaces/Ports

Total Number of USB Ports:   8

Number of USB 3.2 Gen 1 Ports:   4

Number of USB 3.2 Gen 2 Type-A Ports:   4

HDMI:   Yes

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4

Number of M.2 Interfaces:   2

Total Number of Onboard USB Ports:   7

Number of Onboard USB 2.0 Ports:   4

Number of Onboard USB 3.2 Ports:   3

Physical Characteristics

Form Factor:   Micro ATX

Width:   9.6"

Depth:   9.6"

Miscellaneous

Package Contents:

PRO B650M-A WIFI Desktop Motherboard

European Union Regulatory Notice

Quick Installation Guide

2 x M.2 Screw / Standoff Sets

Wi-Fi Antenna

SATA Cable

I/O Shiled

Brand Compatibility:   AMD

Country of Origin:   China

Warranty

Limited Warranty:   3 Year
